Flat-Type Ethernet Switch

WGS-818HP

__feature_benefit

Physical Port 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 8-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-8)

__feature_benefit

  Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE

__feature_benefit

Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE

__feature_benefit

Up to 8 ports of IEEE  802.3at devices powered

__feature_benefit

Supports PoE Power up to 30.8 watts for each PoE port

__feature_benefit

Auto detects powered device (PD)

__feature_benefit

Circuit protection prevents power interference between ports

__feature_benefit

Remote power feeding up to 250 meters (in extend mode)

__feature_benefit

  Layer 2 Features High performance Store and Forward architecture

__feature_benefit

IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

__feature_benefit

9K jumbo frame supports in 1000Mbps duplex mode

__feature_benefit

Automatic address learning and address aging

__feature_benefit

  Industrial Case and Installation Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting

__feature_benefit

IP30 metal chassis

__feature_benefit

Supports -20 to 60 degrees C operating temperature

__feature_benefit

LED indicators for real-time PoE usage

__feature_benefit

48V~56V DC input range

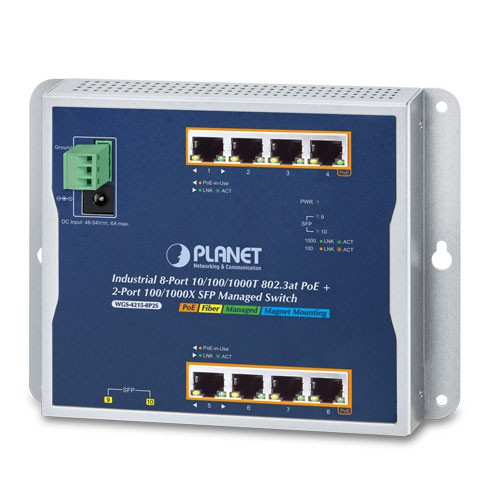

WGS-4215-8P2S

__feature_benefit

Ports: 8 × 10/100/1000BASE-T RJ45 + 2 × 100/1000X SFP

__feature_benefit

PoE Ports: 8 × IEEE 802.3at PoE+

__feature_benefit

PoE Budget: Up to 200W Total

__feature_benefit

Switch Type: Advanced Layer 2 Managed

__feature_benefit

Switching Capacity: 20 Gbps

__feature_benefit

Forwarding Rate: 14.8 Mpps

__feature_benefit

Operating Temperature: -40°C to 75°C

WGS-4215-16P2S

__feature_benefit

Ports: 16 × 10/100/1000BASE-T + 2 × 100/1000X SFP

__feature_benefit

PoE Ports: 16 × IEEE 802.3at/af PoE+

__feature_benefit

PoE Budget: 240W Total (Up to 36W per Port)

__feature_benefit

Switch Type: Advanced Layer 2 Managed

__feature_benefit

Switching Capacity: 36 Gbps

__feature_benefit

Forwarding Rate: 26.78 Mpps

__feature_benefit

Operating Temperature: -10°C to 60°C

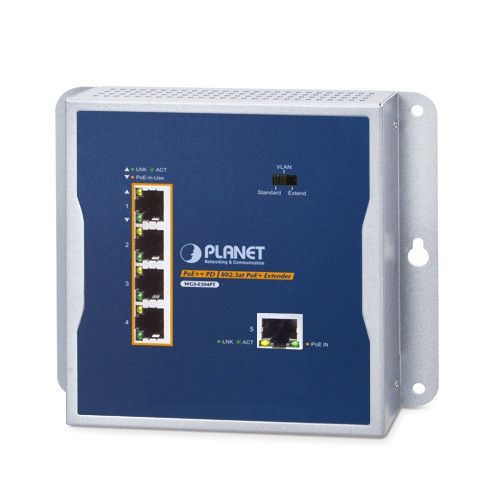

WGS-E304PT

Industrial 1-Port 10/100/1000T 802.3bt PoE++ to 4-Port 802.3at PoE+ Wall-mounted Extender

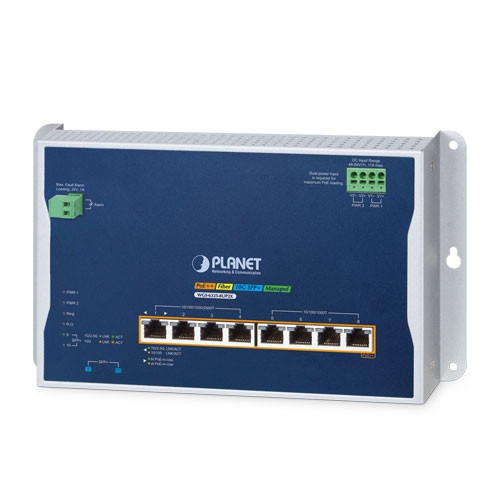

WGS-6325-8UP2X

IP30 Industrial L3 4-Port 2.5G 802.3bt PoE + 4-Port 10/100/1000T 802.3bt PoE + 2-Port 10G SFP+ Wall-mount Managed Switch

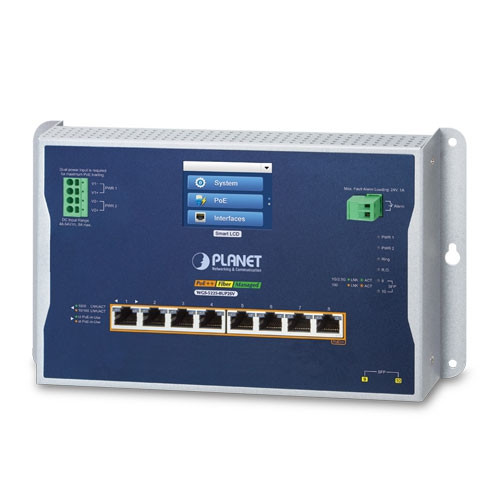

WGS-5225-8UP2SV

IP30, IPv6/IPv4, L2+ 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP Wall-mount Managed Switch with LCD touch screen

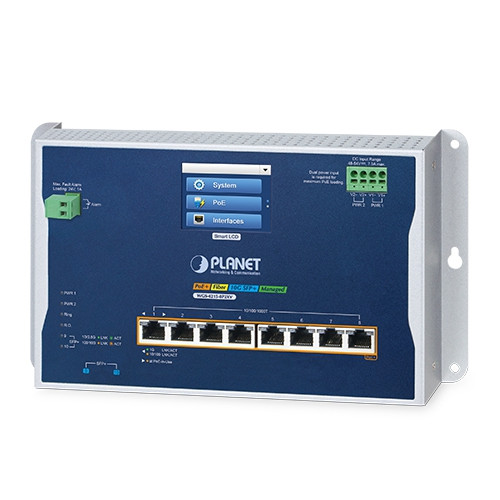

WGS-4215-8P2XV

IP30, IPv6/IPv4, L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10G SFP+ Wall-mount Managed Switch with LCD touch screen

WGS-4215-8P2X

IP30, IPv6/IPv4, L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 10G SFP+ Wall-mount Managed Switch

WGS-803

IP30 8-Port Gigabit Wall-mount Switch (-10 to 60 C), dual redundant power input on 12-48VDC terminal block and power jack

WGS-5225-8MT

IP40, IPv6/IPv4 Industrial L2+ 8-Port 10/100/1000T M12 Wall-mount Managed Switch(-40~75 degrees C, X-coded M12, Relay Bypass function with two M12 ports, dual power input 12-48VDC, ERPS Ring, 1588 TC, Modbus TCP, Cybersecurity features, IPv4/IPv6 Sta

WGS-4215-8HP2S

Industrial L2/L4 8-Port 10/100/1000T 802.3bt PoE + 2-Port 100/1000X SFP Wall-mount Managed Ethernet Switch

WGS-814HP

__feature_benefit

Physical Port 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at PoE+ Injector (Port-1 to Port-4)

__feature_benefit

  Power over Ethernet Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE

__feature_benefit

Backward compliant with IEEE 802.3af Power over Ethernet end-span PSE

__feature_benefit

Up to 4 ports of IEEE 802.3at devices powered

__feature_benefit

Supports PoE Power up to 30.8 watts for each PoE port

__feature_benefit

Auto detects powered device (PD)

__feature_benefit

Circuit protection prevents power interference between ports

__feature_benefit

Remote power feeding up to 250 meters (in extend mode)

__feature_benefit

  Layer 2 Features High performance Store and Forward architecture

__feature_benefit

IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation

__feature_benefit

9K jumbo frame supports in 1000Mbps duplex mode

__feature_benefit

Automatic address learning and address aging

__feature_benefit

  Industrial Case and Installation Compact size; fixed wall mounting, magnetic wall mounting or DIN-rail mounting

__feature_benefit

IP30 metal chassis

__feature_benefit

Supports -20 to 60 degrees C operating temperature

__feature_benefit

LED indicators for real-time PoE usage

__feature_benefit

48V~56V DC input range
