Products - Industrial Connectivity - Protocol Gateways

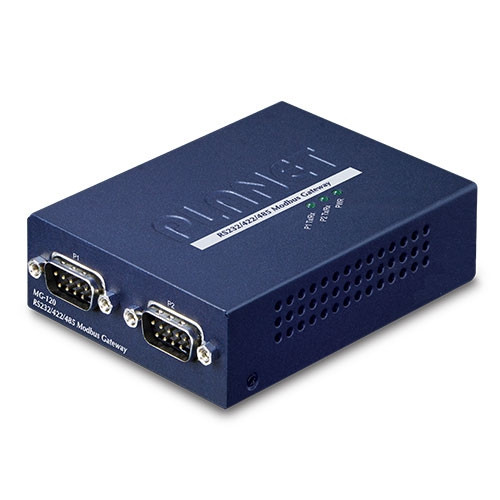

MG-120

$187.50

2-Port RS232/422/485 Modbus Gateway (1-Port 10/100BASE-TX, -10 to 60 C, Modbus RTU/ASCII, Master/Slave)

Add to Cart The item has been added

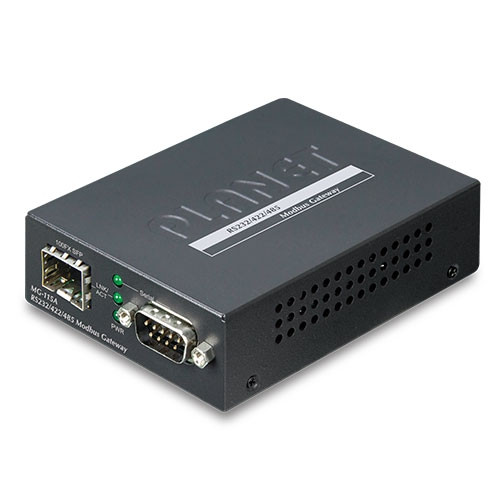

MG-115A

$132.00

__feature_benefit: Serial Interface One DB9 interface supports RS232, 2-wire RS485, 4-wire RS485 and RS422 standards
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit:   Ethernet Interface 1-port 100BASE-FX SFP slot
__feature_benefit:   Management Function Built-in IP-based Web interface and telnet interface for remote management
__feature_benefit: Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
__feature_benefit: Supports RTU Master, RTU Slave, ASCII Master, and ASCII Slave four serial operation modes via management interface
__feature_benefit: Master mode supports 32 slave TCP connection requests
__feature_benefit: Slave mode supports 32 TCP master connections
__feature_benefit: PLANET Modbus Gateway utility for finding client device on the network.
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit: Firmware upgrade/configuration backup and restore via HTTP protocol
__feature_benefit:   Case and Installation Compact size for easy Installation
__feature_benefit: - Standalone - Wall mountable or DIN-rail mounting (optional accessory) - Co-works with PLANET media chassis (MC-700/1500) -10 to 60 degrees C operating temperature
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added

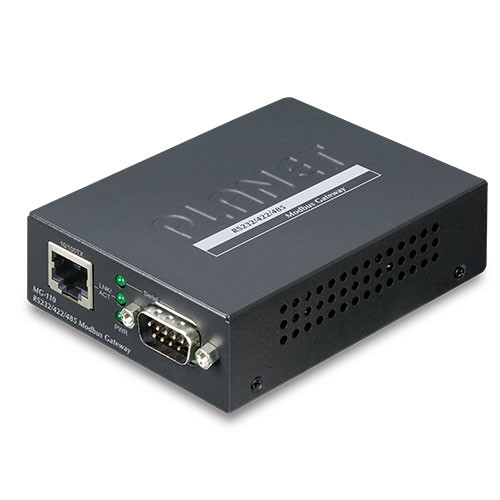

MG-110

$124.00

1-Port RS232/422/485 Modbus Gateway (1-Port 10/100BASE-TX, -10 to 60 C, Modbus RTU/ASCII, Master/Slave)

Add to Cart The item has been added

IMG-2400T

$622.50

__feature_benefit: Serial Interface Four DB9 interfaces support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit:   Ethernet Interface 2-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
__feature_benefit: Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX standard
__feature_benefit: Supports 10/100BASE-TX RJ45 port with distance up to 100m
__feature_benefit:   Management Function Built-in IP-based Web interface and telnet interface for remote management
__feature_benefit: Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
__feature_benefit: Supports RTU Master, RTU Slave, ASCII Master, and ASCII Slave four serial operation modes via management interface
__feature_benefit: Master mode supports 32 TCP slave connection requests
__feature_benefit: Slave mode supports 32 TCP master connections
__feature_benefit: PLANET Modbus Gateway utility for finding client device on the network.
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit: Firmware upgrade/configuration backup and restore via HTTP protocol
__feature_benefit:   Industrial Case and Installation IP40 metal case
__feature_benefit: DIN-rail and wall-mount designs
__feature_benefit: Redundant power design
__feature_benefit: - 12 to 48V DC, redundant power with reverse polarity protection Supports 6000 VDC Ethernet ESD protection
__feature_benefit: Free fall, shock-proof and vibration-proof for industries
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: -40 to 75 degrees C operating temperature
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added

IMG-2200T

$445.00

__feature_benefit: Serial Interface Two DB9 interfaces support RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit:   Ethernet Interface 2-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
__feature_benefit: Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX standard
__feature_benefit: Supports 10/100BASE-TX RJ45 port with distance up to 100m
__feature_benefit:   Management Function Built-in IP-based Web interface and telnet interface for remote management
__feature_benefit: Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
__feature_benefit: Supports RTU Master, RTU Slave, ASCII Master, and ASCII Slave four serial operation modes via management interface
__feature_benefit: Master mode supports 32 TCP slave connection requests
__feature_benefit: Slave mode supports 32 TCP master connections
__feature_benefit: PLANET Modbus Gateway utility for finding client device on the network
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit: Firmware upgrade/configuration backup and restore via HTTP protocol
__feature_benefit:   Industrial Case and Installation IP30 metal case
__feature_benefit: DIN-rail and wall-mount designs
__feature_benefit: Redundant power design
__feature_benefit: - 12 to 48V DC, redundant power with reverse polarity protection Supports 6000 VDC Ethernet ESD protection
__feature_benefit: Free fall, shock-proof and vibration-proof for industries
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: -40 to 75 degrees C operating temperature
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added

IMG-2105AT

$200.00

IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100BASE-FX SFP slot, -40~75 degrees C, dual 9~48V DC, Modbus RTU/ASCII, Master/Slave )

Add to Cart The item has been added

IMG-2102TS

$232.00

IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100BASE-FX SC, Single mode 30km, -40~75 degrees C, dual 9~48V DC, Modbus RTU/ASCII, Master/Slave )

Add to Cart The item has been added

IMG-2102T

$216.00

IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100BASE-FX SC, Multi-mode 2km, -40~75 degrees C, dual 9~48V DC, Modbus RTU/ASCII, Master/Slave )

Add to Cart The item has been added

IMG-2100T

$196.00

__feature_benefit: Serial Interface One DB9 interface that supports RS232
__feature_benefit: One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 operation
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit:   Ethernet Interface 1-port 10/100BASE-TX RJ45 interface with auto MDI/MDI-X function
__feature_benefit:   Management Function Built-in IP-based Web interface and telnet interface for remote management
__feature_benefit: Software Protocol supports Modbus TCP, Modbus RTU, Modbus ASCII, IP, ARP, DHCP and DNS
__feature_benefit: Supports RTU Master, RTU Slave, ASCII Master, and ASCII Slave four serial operation modes via management interface
__feature_benefit: Master mode supports 32 TCP slave connection requests
__feature_benefit: Slave mode supports 32 TCP master connections
__feature_benefit: PLANET Modbus Gateway utility for finding client device on the network
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit: Firmware upgrade/configuration backup and restore via HTTP protocol
__feature_benefit:   Industrial Case and Installation IP30 metal case
__feature_benefit: DIN-rail and wall-mount designs
__feature_benefit: Redundant power design
__feature_benefit: - 9 to 48V DC / 24V AC, redundant power with reverse polarity protection Supports 6000 VDC Ethernet ESD protection
__feature_benefit: Free fall, shock-proof and vibration-proof for industries
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: -40 to 75 degrees C operating temperature
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added
