Products - Industrial Connectivity - Serial Device Server

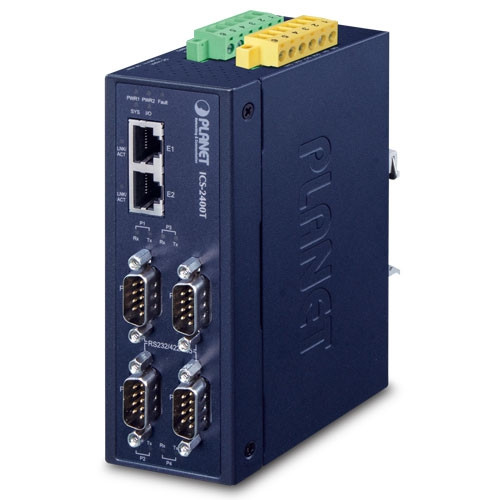

ICS-2400T

$575.00

IP40 Industrial 4-Port RS232/RS422/RS485 Serial Device Server (2 x 10/100TX, -40~75 degrees C, 15KV isolation, dual 12~48V DC, 2xDI + 2xDO)

Add to Cart The item has been added

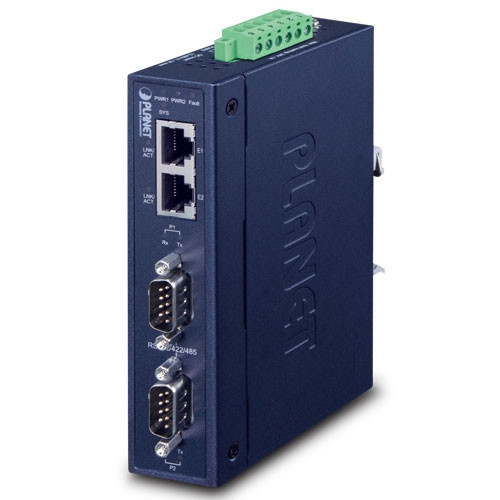

ICS-2200T

$336.00

IP30 Industrial 2-Port RS232/RS422/RS485 Serial Device Server (2 x 10/100TX, -40~75 degrees C, 15KV isolation, dual 12~48V DC )

Add to Cart The item has been added

ICS-2102TS

$170.00

P30 Industrial 1-Port RS232/RS422/RS485 Serial Device Server (1 x 100BASE-FX SC, Single mode 30km, -40~75 degrees C, dual 9~48V DC, Web, Telnet and SNMP management )

Add to Cart The item has been added

ICS-2102T

$156.00

IP30 Industrial 1-Port RS232/RS422/RS485 Serial Device Server (1 x 100BASE-FX SC, Multi-mode 2km, -40~75 degrees C, dual 9~48V DC, Web, Telnet and SNMP management )

Add to Cart The item has been added

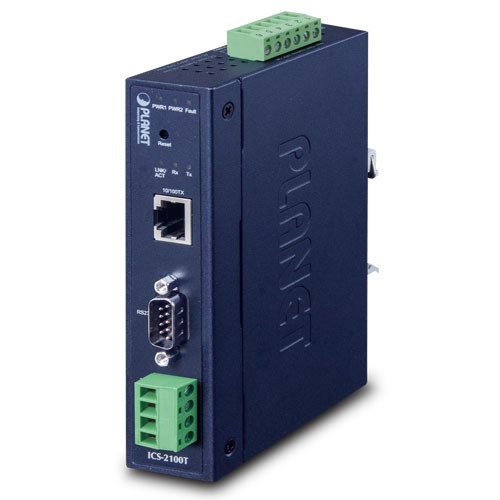

ICS-2100T

$173.88

__feature_benefit: Serial Interface One DB9 interface that supports RS232
__feature_benefit: One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 standards
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit: Data modes include VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
__feature_benefit:   Ethernet Interface 1-port 10/100BASE-TX RJ45  with auto MDI/MDI-X function
__feature_benefit:   Management IPv4 and IPv6 dual stack management
__feature_benefit: Remote Management Interfaces
__feature_benefit: - IP-based Web management - Telnet console management- Windows-based VCOM utility supports searching, monitoring and configuration setting IP NTP (Network Time Protocol) and DNS management
__feature_benefit: Standard TCP/IP interface and versatile operation modes
__feature_benefit: Software Protocol supports ARP, ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
__feature_benefit: Serial Operation mode selected via management interface
__feature_benefit: Pair Connection mode for connecting two serial devices over a network
__feature_benefit: Allows a maximum of 4 hosts to be accessed as TCP client mode
__feature_benefit: Firmware upgrade via HTTP protocol
__feature_benefit: Accessible IP security control to prevent illegal users
__feature_benefit: Event notification
__feature_benefit: - Remote Syslog server - SNMP trap - Relay output alarm DHCP client for IP address assignment
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit:   Industrial Case and Installation IP30 metal case
__feature_benefit: DIN-rail and wall-mount designs
__feature_benefit: Redundant power design
__feature_benefit: - 9 to 48V DC / 24V AC, redundant power with reverse polarity protection Supports 6000 VDC Ethernet ESD protection
__feature_benefit: -40 to 75 degrees C operating temperature
__feature_benefit: Free fall, shock-proof and vibration-proof for industries
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added

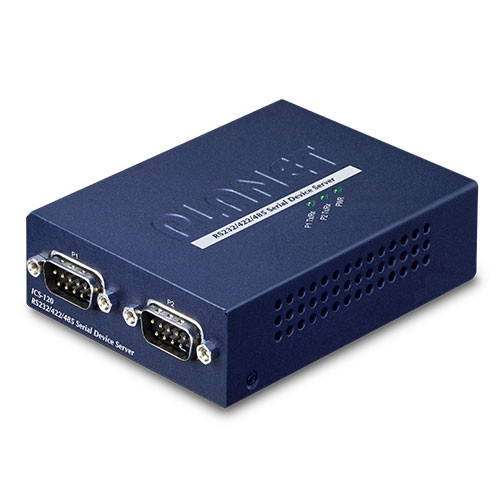

ICS-120

$120.00

2-Port RS232/422/485 Serial Device Server (1-Port 10/100BASE-TX, -10 to 60 C, Web, Telnet and SNMP management)

Add to Cart The item has been added

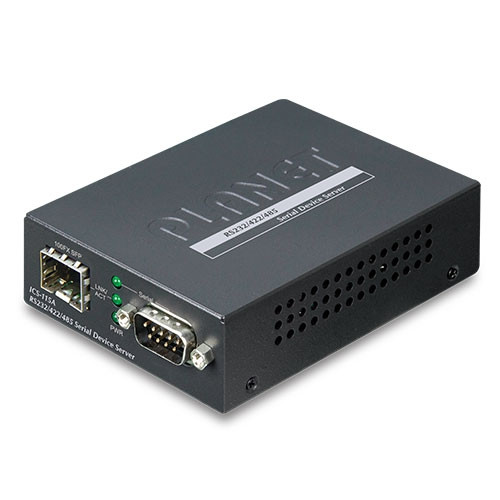

ICS-115A

$108.00

__feature_benefit: Serial Interface One DB9 interface supports RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit: Data mode includes VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
__feature_benefit:   Ethernet Port 1-port 100BASE-FX SFP slot
__feature_benefit:   Management IPv4 and IPv6 dual stack management
__feature_benefit: Remote Management Interfaces
__feature_benefit: - IP-based Web management - Telnet console management - Windows-based VCOM utility supports searching, monitoring and configuration setting IP NTP (Network Time Protocol)
__feature_benefit: Standard TCP/IP interface and versatile operation modes
__feature_benefit: Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
__feature_benefit: Serial Operation mode selected via management interface
__feature_benefit: Pair Connection mode for connecting two serial devices over a network
__feature_benefit: Allows a maximum of 4 hosts to be accessed as TCP client mode
__feature_benefit: Firmware upgrade via HTTP protocol
__feature_benefit: Accessible IP security control to prevent illegal users
__feature_benefit: Event notification
__feature_benefit: - Remote syslog server - SNMP trap DHCP client for IP address assignment
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the network
__feature_benefit:   Case and Installation Compact size for easy Installation
__feature_benefit: - Standalone -- Wall mountable or DIN-rail mounting (optional accessory) - Co-works with PLANET MC family Media Chassis (MC-700/1500) External power adaptor 5V DC, 2A max.
__feature_benefit: Supports 6000 VDC Ethernet ESD protection
__feature_benefit: -10 to 60 degrees C operating temperature
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added

ICS-110

$104.00

__feature_benefit: Serial Interface One DB9 interface supports RS232, 2-wire RS485, 4-wire RS485 and RS422 operation
__feature_benefit: Asynchronous serial data rates up to 921600bps
__feature_benefit: Data mode includes VCOM, RFC2217, TCP Server, TCP Client, UDP, Remote Pair, Modbus converter server / client and Serial Telnet modes
__feature_benefit:   Ethernet Interface 1-port 10/100BASE-TX RJ45 interface with auto MDI/MDI-X function
__feature_benefit:   Management IPv4 and IPv6 dual stack management
__feature_benefit: Remote Management Interfaces IP-based Web management
__feature_benefit: Telnet console management
__feature_benefit: Windows-based VCOM utility supports searching, monitoring and configuration setting
__feature_benefit: IP NTP (Network Time Protocol)
__feature_benefit: Standard TCP/IP interface and versatile operation modes
__feature_benefit: Software Protocol supports ICMP, TCP/IP, UDP, HTTP server, DHCP client, Telnet server/client
__feature_benefit: Serial Operation mode selected via management interface
__feature_benefit: Pair Connection mode for connecting two serial devices over a network
__feature_benefit: Allows a maximum of 4 hosts to be accessed as TCP client mode
__feature_benefit: Firmware upgrade via HTTP protocol
__feature_benefit: Accessible IP security control to prevent illegal users
__feature_benefit: Event notification Remote syslog server
__feature_benefit: SNMP trap
__feature_benefit: DHCP client for IP address assignment
__feature_benefit: PLANET Smart Discovery utility automatically finds the client devices on the netw
__feature_benefit:   Case and Installation Compact size for easy Installation Standalone -- Wall mountable or DIN-rail mounting (optional accessory)
__feature_benefit: Co-works with PLANET MC family Media Chassis (MC-700/1500)
__feature_benefit: External power adaptor 5V DC, 2A max.
__feature_benefit: Supports 6000 VDC Ethernet ESD protection 10 to 60 degrees C operating temperature
__feature_benefit: Supports extensive LED indicators for network diagnosis
__feature_benefit: Reset button for resetting to factory default

Add to Cart The item has been added
