Budget-friendly Industrial L2+ Ethernet Switch

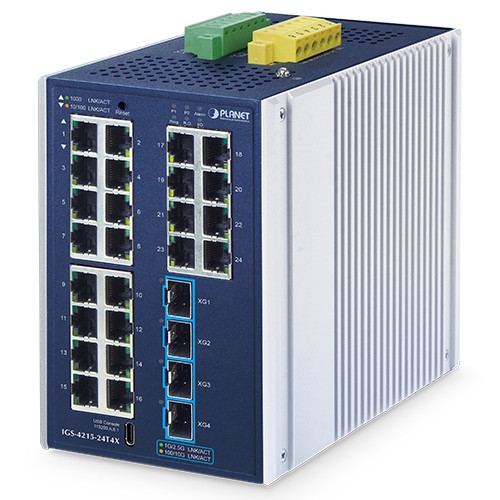

Designed to thrive in demanding industrial environments, the IGS-4215-24T4X is PLANET's latest addition to its DIN-rail L2/L4 Managed Gigabit switch lineup. This model combines exceptional performance with cost-efficiency, featuring robust network management capabilities with IPv6/IPv4 dual-stack support and an integrated L2/L4 Gigabit switching engine. It is equipped with 24 10/100/1000BASE-T ports and 4 10GBASE-X SFP+ fiber slots, offering flexible and reliable network connections. The switch ensures stable operation across a wide temperature range of -40 to 75°C, making it suitable for various industrial applications. Additionally, the USB Type-C console port allows for straightforward management, while the rugged IP30 aluminum casing guarantees durability and resilience in harsh conditions.
Cybersecurity Network Solution to Minimize Security Risks
The IGS-4215-24T4X supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP Snooping, IP Source Guard, Dynamic ARP Inspection Protection, RADIUS and TACACS+ user accounts management, SNMPv3 authentication, and so on to complement it as an all-security solution.
Redundant Ring, Fast Recovery for Critical Network Applications
The IGS-4215-24T4X supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology and Spanning Tree Protocol (802.1s MSTP) into customer’s network to enhance system reliability and uptime in various environments.
Effective Alarm Alert for Better Protection
The IGS-4215-24T4X incorporates a Fault Alarm feature that promptly notifies users of any issues with the switches. This valuable feature eliminates the need for users to spend time locating the problem, resulting in significant time and human resource savings.
Digital Input and Digital Output for External Alarm
The IGS-4215-24T4X supports Digital Input and Digital Output through a terminal block located on its upper panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-4215-24T4X port shows “link down”, “link up” or “power failure”.
Environmentally Hardened Design
With the IP30 aluminum industrial case, the IGS-4215-24T4X provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioner. Being able to operate under the temperature range from -40 to 75 °C, the IGS-4215-24T4X can be placed in almost any difficult environment.
Robust Protection
The IGS-4215-24T4X provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±4KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management
The IGS-4215-24T4X switch delivers high-performance transmission and advanced Layer 2 and Layer 4 functionalities, along with Layer 3 IPv4 and IPv6 static routing. This capability enables efficient routing between different VLANs and IP addresses, offering a secure, flexible, and straightforward networking solution for diverse applications.
Robust Layer 2 Features
The IGS-4215-24T4X can be programmed for advanced switch management functions such as dynamic port link aggregation, 802.1Q VLAN, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), loop and BPDU guard, IGMP snooping, and MLD snooping. With dynamic port link aggregation, the switch enables the creation of a high-speed trunk. For instance, it can combine four 10G ports, creating a resilient 40Gbps connection with fail-over support. Additionally, the inclusion of Link Layer Discovery Protocol (LLDP) enhances Layer 2 functionality by providing essential information about neighboring devices within the local broadcast domain.
Efficient Traffic Control
The IGS-4215-24T4X is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast/multicast/unicast storm control, per port bandwidth control, 802.1p/CoS/IP DSCP QoS priority and remarking. It guarantees the best performance in VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Enhancing Network Security
PLANET IGS-4215-24T4X offers comprehensive IPv4/IPv6 Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. With the protected port function, communication between edge ports can be prevented to guarantee user privacy. Furthermore, Port security function allows to limit the number of network devices on a given port. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.
Ensuring Network Integrity
The IGS-4215-24T4X also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. Its accuracy, consistency, and reliability of data can be transmitted across a network. Moreover, it ensures that information remains unaltered during transmission and that the network itself is secure from unauthorized access or attacks.
User-friendly and Secure Management
For efficient management, the IGS-4215-24T4X is equipped with Command line, Web and SNMP management interfaces.
- With the built-in Web-based management interface, the IGS-4215-24T4X offers an easy-to-use, platform-independent management and configuration facility.
- For text-based command line management, it can be accessed via Telnet, SSH and the console port.
- By supporting the standard SNMP protocol, the switch can be managed via any SNMP-based management software.
Moreover, the IGS-4215-24T4X offers secure remote management by supporting SSHv2, TLSv1.2 and SNMP v3 connections which encrypt the packet content at each session.
Flexible Long-distance Extension Solution
The emergence of 10G Ethernet marks a significant advancement in Ethernet technology. The IGS-4215-24T4X is a powerful networking device that offers four 10G SFP+ slots capable of supporting three different speeds. These slots can operate at 10GBASE-SR/LR or 1G/2.5GBASE-SX/LX backwards, providing administrators with flexibility in choosing the most suitable SFP/SFP+ transceiver based on the required transmission distance and speed. With ample bandwidth and robust processing capacity, the IGS-4215-24T4X provides an efficient solution for administrators seeking to enhance their network infrastructure.
Intelligent SFP Diagnosis Mechanism
The IGS-4215-24T4X supports SFP-DDM (Digital Diagnostic Monitor) function that can easily monitor real-time parameters of the SFP for the network administrator, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
Remote Management Solution
PLANET's Universal Network Management System (UNI-NMS) and CloudViewerPro app provide robust support for IT staff in effectively managing and monitoring all network devices, including the IGS-4215-24T4X, from remote locations. Tailored for deployment in both enterprises and industries where the IGS-4215-24T4X is utilized remotely, these systems enable the identification of bugs or faulty conditions without the need for on-site visits. With UNI-NMS or the CloudViewerPro app, businesses of all types can now be swiftly and efficiently managed through a unified platform, streamlining operational oversight.
