Ultra-high-speed Wi-Fi 6 Wireless LAN Solution

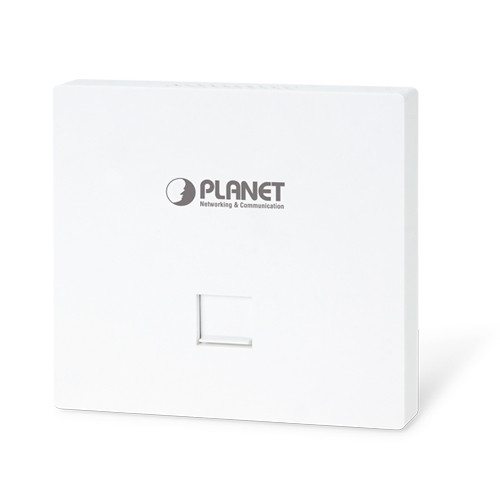

PLANET WDAP-W3000AX 3000Mbps Dual Band 802.11ax Wireless AP, supporting MU-MIMO, OFDMA (Orthogonal Frequency Division Multiple Access), Seamless Roaming, Beamforming and BSS Coloring technology, provides a maximum wireless speed of 2400Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. The maximum number of client users is up to 256, ensuring more secure and robust connectivity with the adoption of Wi-Fi 6 technology.
Suitable for Any Room Installation without Spoiling Interior Design
Featuring attractive in-wall design, the WDAP-W3000AX can be firmly installed into the wall via the standard 86 x 86 mm European outlet box, which makes electrical wiring invisible and convenient for room installation without affecting the original interior design. It is ideal for hotels, residences, hospitals and more to establish any kind of wireless network.
Super Power Dual band WLAN Solution
PLANET WDAP-W3000AX, adopting the IEEE 802.11ax Wi-Fi 6 standard, provides a high-speed transmission. The maximum wireless speed in 2.4GHz band is up to 574Mbps with 11ax, and in the 5GHz band is up to 2402Mbps with 11ax. Both the 2.4GHz and 5GHz wireless connections can also be used simultaneously.
Benefits of MU-MIMO, OFDMA, Seamless Roaming, Beamforming and BSS Coloring
The WDAP-W3000AX can be installed in public areas such as hotspots, airports and conferences as OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the individual clients. With MU-MIMO and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. Beamforming is to improve your Wi-Fi signal when you are far away from your router. The BSS color is a numerical identifier of the BSS. 802.11ax radios that are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel.
These technologies also can solve Wi-Fi congestion issues in open work spaces and conference rooms. The WDAP-W3000AX can offer more powerful throughput coverage of up to 256 client users.
OFDMA (Orthogonal Frequency Division Multiple Access) Benefits
- Helps transmit small and large packets together to reduce bandwidth burden and improves data transmission performance
- Transmitting data at the same time can effectively reduce the transmission delay for longer frame and low-speed transmission.
- Improves the overall traffic quality, and effectively uses bandwidth in an environment where multiple people use the Internet.
- Increases the number of devices that can be connected to the AP.
- Reduces the power consumption of the device by way of the use of low bandwidth.
Beamforming
Beamforming is to improve your Wi-Fi signal when you are far away from your router. When you use beamforming, Wi-Fi beamforming narrows the focus of that router signal, sending it directly to your devices in a straight line, thus minimizing surrounding signal interference and increasing the strength of the signal that ultimately bring you the following benefits:
- Extend your Wi-Fi coverage
- Deliver a more stable Wi-Fi connection
- Deliver better Wi-Fi throughput
- Reduce router interference
BSS Coloring
The BSS color is a numerical identifier of the BSS. 802.11ax radios that are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel. If the color is the same, this is considered to be an intra-BSS frame transmission. In other words, the transmitting radio belongs to the same BSS as the receiver. If the detected frame has a different BSS color from its own, then the STA considers that frame as an inter-BSS frame from an overlapping BSS.
WPA3 Next Generation Security for Your WLAN Solution
WPA3 is the next generation Wi-Fi security technology that provides the most advanced security protocol to the market. WPA3 makes your connection more secure by preventing hackers from easily cracking your password no matter how simple the password is. WPA3 can also provide more reliable password-based authentication, so it can better protect the security of individual users.
* WDAP-W3000AX only supports WPA3-Personal.
Advanced Security and Rigorous Authentication
The WDAP-W3000AX supports WPA/WPA2/WPA3 wireless encryptions, as well as WPA2 Enterprise and WPA/WPA2 Enterprise, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established.
Multiple Operation Modes for Various Applications
The WDAP-W3000AX supports the simplified usage modes of AP, Gateway, AP, Repeater and WISP through which they provide more flexibility for users when wireless network is established. Compared with general wireless access points, the WDAP-W3000AX offers more powerful and flexible capability for wireless clients.
Optimized Efficiency in AP Management with Cloud and NMS System
Via PLANET CloudViewerPro app or NMSViewerPro app (necessary for NMS-500/NMS-1000V), access points can be monitored and controlled in real time without a specified location and time limitation. The brand-new GUI configuration wizard helps the system administrator easily set up the WDAP-W3000AX step by step. Besides, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel overlap to assure greater performance. With the automatic transmission power mechanism, distance control and scheduling reboot setting, the WDAP-W3000AX is easy for the administrator to deploy and manage without requiring on-site maintenance. Moreover, PLANET NMS-500 or NMS-1000V AP control function can be used to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.
Mesh Wi-Fi for More Hassle-free Network
The WDAP-W3000AX supports TLSv1.3 protocols to provide strong protection against advanced threats. It includes a cybersecurity feature such as SNMPv3 authentication, and so on to complement it as a security solution.
The WDAP-W3000AX boasts support for 802.11s Mesh technology, an open standard wireless networking solution that takes Wi-Fi coverage and stability to the next level. It enables seamless collaboration between various router brands and Wi-Fi device brands, creating a unified and efficient network experience.
Mesh technology leverages multiple frequency bands, enabling fast roaming and intelligent network management, resulting in top-notch performance. Setting up a Mesh network is a breeze, thanks to its user-friendly installation process and automated configuration. This ensures that users can enjoy extended Wi-Fi coverage and a consistently reliable connection across their homes or workplaces.
In summary, Mesh technology is the go-to solution for those seeking to enhance their Wi-Fi coverage without the headache of complex network setups. It's a convenient and effective way to achieve a seamless and robust wireless network.
(The maximum number of Mesh supported device is 6 pcs.)
