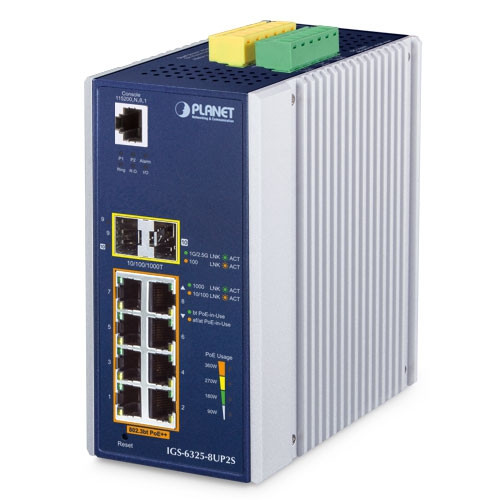

Planet IGS-6325-8UP2S

IP30 DIN-rail Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-port 1G/2.5G SFP Full Managed Switch (-40 to 75 C, 8-port 95W PoE++, 802.3bt/PoH/Force modes, dual redundant power input on 48~56VDC terminal block, DIDO, ERPS Ring, 1588 PTP TC, Modbus

$869.40
ON BACKORDER
Estimated Availability: 06/24/2025

Please contact us via sales@neteon.net or 888-908-3330 for other product options.

Adding to cart… The item has been added

Features

DATASHEET

Physical  Port

  • 8  10/100/1000BASE-T  Gigabit  Ethernet  RJ45  ports  with  802.3bt  PoE++  Injector  function
  • 2  100/1000/2500BASE-X  SFP  slots  for  SFP  type  auto  detection, compatible with 2.5GBASE-X SFP
  • One  RJ45-to-RS232  console  interface  for  basic  management  and  setup



802.3bt  Power  over  Ethernet

  • Complies  with  IEEE  802.3bt  Power  over  Ethernet  Plus  Plus  Type-4  PSE
  • Backward  compatible  with  IEEE  802.3at/af  PD  device
  • Up  to  8  ports  of  IEEE  802.3af/IEEE  802.3at/IEEE  802.3bt  PoE++  devices  powered
  • Supports  PoE  power  up  to  95  watts  for  each  PoE  port
  • Total  of  360-watt  PoE  budget
  • Auto  detects  powered  device  (PD)
  • Circuit  protection  prevents  power  interference  between  ports
  • Remote  power  feeding  up  to  100m
  • PoE  management  features
    • Total  PoE  power  budget  control
    • Per  port  PoE  function  enable/disable
    • PoE  admin-mode  control
    • PoE  port  power  feeding  priority
    • Per  PoE  port  power  limit
    • PD  classification  detection
    • PoE  extend  mode  control  to  support  power  feeding  up  to  a  distance  of  up  to  200  meters
  • Intelligent  PoE  features
    • Temperature  threshold  control
    • PoE  usage  threshold  control
    • PD  alive  check
    • PoE  schedule



Industrial  Protocol

  • Modbus  TCP  for  real-time  monitoring  in  the  SCADA  system
  • IEEE  1588v2  PTP  (Precision  Time  Protocol)  transparent  clock  mode



Industrial  Hardened  Design

  • Dual  power  input,  redundant  power  with  reverse  polarity  protection
    • DC  48  to  54V  input
    • Active-active  redundant  power  failure  protection
    • Backup  of  catastrophic  power  failure  on  one  supply
    • Fault  tolerance  and  resilience
  • DIN-rail  or  and  wall-mountable  designs
  • IP30  aluminum  case
  • Supports  6000V  Ethernet  ESD  protection
  • -40  to  75  degrees  C  operating  temperature



Digital  Input  and  Digital  Output

  • 2  Digital  Input  (DI)
  • 2  Digital  Output  (DO)
  • Integrate  sensors  into  auto  alarm  system
  • Transfer  alarm  to  IP  network  via  email  and  SNMP  trap



Layer  3  IP  Routing  Features

  • IP  dynamic  routing  protocol  supports  RIP,  OSPFv2  and  OSPFv3
  • Supports  maximum  128  static  routes  and  route  summarization
  • IPv4  dynamic  routing  protocol  supports  OSPFv2
  • IPv4/IPv6  hardware  static  routing
  • Routing  interface  provides  per  VLAN  routing  mode



Layer  2  Features

  • Prevents  packet  loss  with  back  pressure  (half-duplex)  and  IEEE  802.3x  pause  frame  flow  control  (full-duplex)
  • High  performance  of  Store-and-Forward  architecture,  and  runt/CRC  filtering  eliminates  erroneous  packets  to  optimize  the  network  bandwidth
  • Storm  Control  support
  • Broadcast/Multicast/Unicast
  • Supports  VLAN
    • IEEE  802.1Q  tagged  VLAN
    • Up  to  4K  VLANs  groups,  out  of  4095  VLAN  IDs
    • Supports  provider  bridging  (VLAN  Q-in-Q  IEEE  802.1ad)
    • Private  VLAN  Edge  (PVE)
    • Protocol-based  VLAN
    • MAC-based  VLAN
    • Voice  VLAN
    • GVRP  (GARP  VLAN  Registration  Protocol)
  • Supports  Spanning  Tree  Protocol
    • IEEE  802.1D  Spanning  Tree  Protocol  (STP)
    • IEEE  802.1w  Rapid  Spanning  Tree  Protocol  (RSTP)
    • IEEE  802.1s  Multiple  Spanning  Tree  Protocol  (MSTP),  spanning  tree  by  VLAN
    • BPDU  Guard
  • Supports  Link  Aggregation
    • 802.3ad  Link  Aggregation  Control  Protocol  (LACP)
    • Cisco  ether-channel  (static  trunk)
    • Maximum  4  trunk  groups  with  4  ports  per  trunk  group
    • Up  to  40Gbps  bandwidth  (duplex  mode)
  • Provides  port  mirror  (many-to-1)
  • Port  mirroring  to  monitor  the  incoming  or  outgoing  traffic  on  a  particular  port
  • Loop  protection  to  avoid  broadcast  loops
  • Link  Layer  Discovery  Protocol  (LLDP)
  • Compatible  with  Cisco  uni-directional  link  detection(UDLD)  that  monitors  a  link  between  two  switches  and  blocks  the  ports  on  both  ends  of  the  link  if  the  link  fails  at  any  point  between  the  two  devices
  • Supports  G.8032  ERPS  (Ethernet  Ring  Protection  Switching)
  • IEEE  1588  and  Synchronous  Ethernet  network  timing



Quality  of  Service

  • Ingress  Shaper  and  Egress  Rate  Limit  per  port  bandwidth  control
  • 8  priority  queues  on  all  switch  ports
  • Traffic  classification
    • IEEE  802.1p  CoS
    • IP  TOS/DSCP/IP  precedence
    • IP  TCP/UDP  port  number
    • Typical  network  application
  • Strict  priority  and  Weighted  Round  Robin  (WRR)  CoS  policies
  • Supports  QoS  and  In/Out  bandwidth  control  on  each  port
  • Traffic-policing    on  the  switch  port
  • DSCP  remarking



Multicast

  • Supports  IPv4  IGMP  snooping  v1,  v2  and  v3
  • Supports  IPv6  MLD  snooping  v1  and  v2
  • Querier  mode  support
  • IPv4  IGMP  snooping  port  filtering
  • IPv6  MLD  snooping  port  filtering
  • MVR  (Multicast  VLAN  Registration)



Security

  • Authentication
    • IEEE  802.1X  Port-based/MAC-based  network  access  authentication
    • Built-in  RADIUS  client  to  cooperate  with  the  RADIUS  servers
    • TACACS+  login  users  access  authentication
    • RADIUS/TACACS+  users  access  authentication
    • Guest  VLAN  assigns  clients  to  a  restricted  VLAN  with  limited  services.
  • Access  Control  Lit
    • IP-based  Access  Control  List  (ACL)
    • MAC-based  Access  Control  List
  • Source  MAC/IP  address  binding
  • DHCP  snooping  to  filter  distrusted  DHCP  messages
  • Dynamic  ARP  Inspection  discards  ARP  packets  with  invalid  MAC  address  to  IP  address  binding
  • IP  Source  Guard  prevents  IP  spoofing  attacks
  • IP  address  access  management  to  prevent  unauthorized  intruder



Management

  • IPv4  and  IPv6  dual  stack  management
  • Switch  Management  Interfaces
    • Console  and  Telnet  Command  Line  Interface
    • HTTP  web  switch  management
    • SNMP  v1  and  v2c  switch  management
    • SSHv2,  TLSv1.2  and  SNMP  v3  secure  access
  • SNMP  Management
    • Four  RMON  groups  (history,  statistics,  alarms,  and  events)
    • SNMP  trap  for  interface  Link  Up  and  Link  Down  notification
  • IPv6  IP  address/NTP/DNS  management
  • Built-in  Trivial  File  Transfer  Protocol  (TFTP)  client
  • BOOTP  and  DHCP  for  IP  address  assignment
  • System  Maintenance
    • Firmware  upload/download  via  HTTP
    • Reset  button  for  system  reboot  or  reset  to  factory  default
    • Dual  images
  • DHCP  Relay
  • DHCP  Option  82
  • DHCP  Server
  • User  Privilege  levels  control
  • Network  Time  Protocol  (NTP)
  • Network  Diagnostic
    • SFP-DDM  (Digital  Diagnostic  Monitor)
    • Cable  diagnostic  technology  provides  the  mechanism  to  detect  and  report  potential  cabling  issues
    • ICMPv6/ICMPv4  remote  ping
  • SMTP/Syslog  remote  alarm
  • System  Log
  • PLANET  UNI-NMS  (Universal  Network  Management)  and  CloudViewer  app  for  deployment  management
  • Provides  ONVIF  for  cooperating  with  PLANET  IP  video  surveillance

Outstanding 802.3bt PoE++ Solution for Hardened Environment

Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, PLANET IGS-6325-8UP2S L3 Industrial Managed PoE++ Switch features eight 10/100/1000BASE-T 802.3bt PoE++ ports with each port powering up to 95 watts and two 100/1000/2500BASE-X SFP interfaces in a rugged IP30 metal case for stable operation in heavy industrial  environments. It supports rich PoE operation modes including 95-watt 802.3bt type-4 PoE++ ports, legacy PoE mode and 4-pair force mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.

Being able to operate under wide temperature range from -40 to 75 degrees C, the IGS-6325 PoE++ Switch series can be placed in almost any difficult environment. The IGS-6325 PoE++ Switch series also allows either DIN rail or wall mounting for efficient use of cabinet space.



802.3bt PoE++ – 90~95-watt Power over 4-pair UTP Solution

As the IGS-6325 PoE++ Series adopts the IEEE 802.bt PoE++ standard, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). It possesses triple amount of power capability than the conventional 802.3at PoE+ and is an ideal solution to satisfy the growing demand for higher power consuming network PDs, such as:

  • PoE PTZ speed dome cameras
  • Any network device that needs higher PoE power to work normally
  • Thin clients
  • AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
  • Remote digital signage displays
  • PoE lightings



802.3bt PoE++ and Advanced PoE Power Output Mode Management

To meet the demand of various powered devices consuming stable PoE power, the IGS-6325 PoE++ Switch series provides five different PoE power output modes for selection.

  • 95W 802.3bt PoE++ Power Output Mode
  • 95W UPOE/Legacy Power Output Mode
  • 95W Force Power Output Mode
  • 36W End-span PoE Power Output Mode (Pins 1, 2, 3, 6)
  • 36W Mid-span PoE Power Output Mode (Pins 4, 5, 7, 8)



Convenient and Smart ONVIF Devices with Detection Feature

PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the IGS-6325 PoE++ Switch series GUI, clients just need one click to search and show all of the ONVIF devices via network application.

In addition, clients can upload floor plans to the switch, allowing to locate surveillance devices for easier inspection and planning. Moreover, clients can get real-time surveillance’s information and online/offline status, and also allows cameras PoE reboot control from GUI.



Built-in Unique PoE Functions for Powered Devices Management

Being the managed PoE switches for surveillance, wireless and VoIP networks, the IGS-6325 PoE++ Switch series features the following special PoE management functions:

  • PD alive check
  • Scheduled power recycling
  • PoE schedule
  • PoE usage monitoring



Intelligent Alive Check for Powered Device

The IGS-6325 PoE++ Series can be configured to monitor connected PD’s status in real time via ping action. Once the PD stops working and responding, the IGS-6325 PoE++ Series will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability in that the PoE port will reset the PD power, thus reducing administrator’s management burden.



PoE Schedule for Energy Savings

Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the IGS-6325 PoE++ Series can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.



Scheduled Power Recycling

The IGS-6325 PoE++ Series allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.



PoE Usage Monitoring

Via the power usage chart in the web management interface, the IGS-6325 PoE++ Series enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.



Layer 3 Network Routing Support

The IGS-6325 PoE++ Series allows administrators to boost network efficiency by configuring Layer 3 IPv4/IPv6 VLAN static routing manually or automatically through the Routing Information Protocol (RIP) or Open Shortest Path First (OSPF) settings.

  • The RIP uses hop count as a routing metric and prevents routing loops by setting a limit on the number of hops allowed in a path from source to destination.
  • The OSPF is an interior dynamic routing protocol for autonomous systems based on link state. The protocol creates a database of link states by exchanging link states among Layer 3 switches and then uses the Shortest Path First algorithm to generate a route table based on that database.



Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-6325 PoE++ Series supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 10ms.



Cybersecurity Network Solution to Minimize Security Risks

The IGS-6325 PoE++ Series comes with enhanced cybersecurity to fend off cyber threats and cyber attacks. It supports SSHv2 and TLSv1.2 protocols to provide strong protection against advanced threats. Served as a key point to transmit data to customer's critical equipment in a business network, the cybersecurity feature of the IGS-6325 PoE++ Series protects the switch management and enhances the security of the mission-critical network without any extra deployment cost and effort.



Modbus TCP Provides Flexible Network Connectivity for Factory Automation

With the supported Modbus TCP/IP protocol, the IGS-6325 PoE++ Series can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information, communication status, and DI and DO status, thus easily achieving enhanced monitoring and maintenance of the entire factory.



1588 Time Protocol for Industrial Computing Networks

The IGS-6325 PoE++ Series is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet.



SMTP/SNMP Trap Event Alert

The IGS-6325 PoE++ Series provides event alert function to help to diagnose the abnormal device owing to whether or not there is a break of the network connection, or the rebooting response.



Effective Alarm Alert for Better Protection

The IGS-6325 PoE++ Series supports a Fault Alarm feature which can alert the users when there is something wrong with the switches. With this ideal feature, the users would not have to waste time finding where the problem is. It will help to save time and human resource.



Digital Input and Digital Output for External Alarm

The IGS-6325 PoE++ Series supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the I IGS-6325 PoE++ Series’ port shows link down, link up or power failure.



Robust Layer 2 to Layer 4 Features

The IGS-6325 PoE++ Series can be programmed for advanced Layer 2 switch management functions such as dynamic port link aggregation, 802.1Q tagged VLAN, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control, IGMP snooping and MLD snooping. Via the aggregation of supporting ports, the IGS-6325 PoE++ Series allows the operation of a high-speed trunk group that comes with multiple ports and supports fail-over as well.



Efficient Management

For efficient management, the IGS-6325 PoE++ Series is equipped with console, Web and SNMP management interfaces.

  • With the built-in Web-based management interface, it offers an easy-to-use, platform-independent management and configuration facility.
  • For text-based management, it can be accessed via Telnet and the console port.
  • For standard-based monitor and management software, it offers SNMPv3 connection which encrypts the packet content at each session for secure remote management.





Remote Management Solution

PLANET's Universal Network Management System (UNI-NMS) and CloudViewer app support IT staff by remotely managing all network devices and monitoring PDs' operational statuses. Thus, they're designed for both the enterprises and industries where deployments of PDs can be as remote as possible, without having to go to the actual location once a bug or faulty condition is found. With the UNI-NMS or CloudViewerPro app, all kinds of businesses can now be speedily and efficiently managed from one platform.

Powerful Network Security

The IGS-6325 PoE++ Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.



Advanced IP Network Protection

The IGS-6325 PoE++ Series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.



Flexible and Extendable Fiber Optic Ethernet Solution

With its additional 2-port 1000BASE-SX/LX SFP or 2500BASE-X SFP fiber optic Ethernet link capability, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. The IGS-6325 PoE++ Series provides broad bandwidth and powerful processing capacity.



Intelligent SFP Diagnosis Mechanism

The IGS-6325 PoE++ Series supports SFP-DDM (digital diagnostic monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
